Guangdong Tubainian New Materials Co., Ltd. is one of the leading manufacturers and suppliers of reflective heat insulating waterproof coating for metal houses in China. We are committed to providing high quality customized coatings with low price. Welcome to buy the newest reflective heat insulating waterproof coating for metal houses in stock here from our factory. If you have any enquiry about pricelist, please feel free to email us.
Product Overview

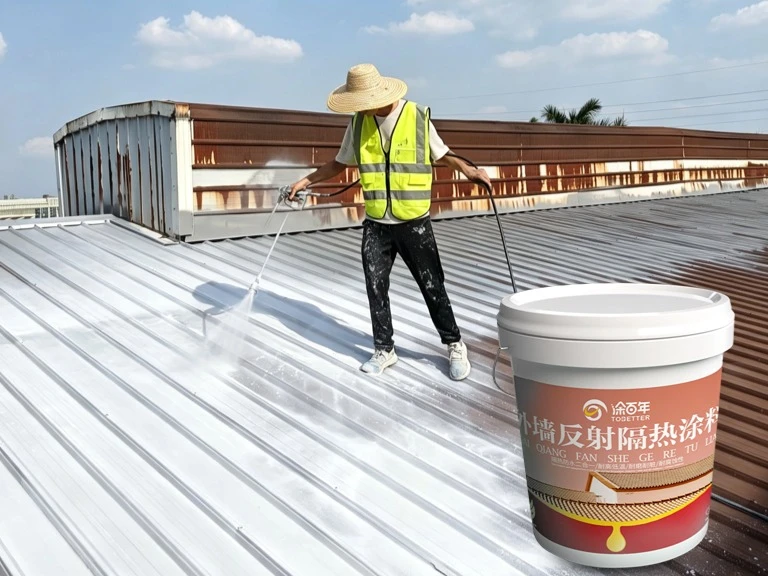

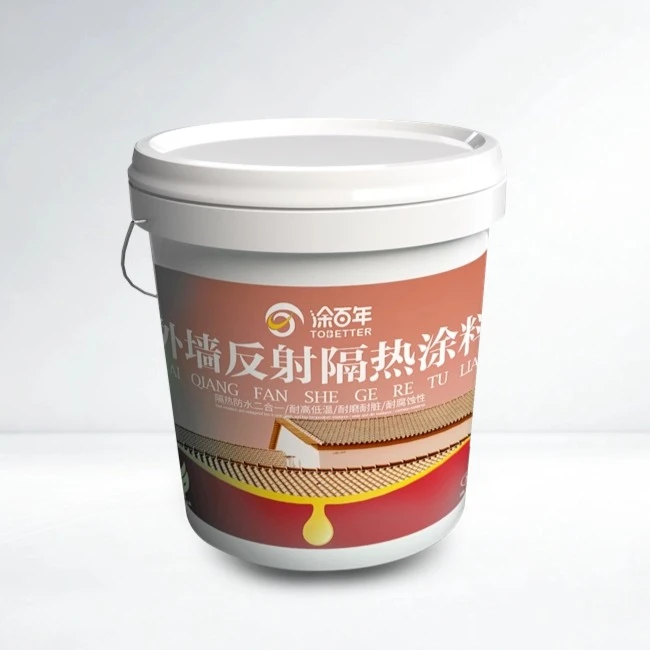

Our Reflective heat insulating waterproof coating for metal houses is built strictly for industrial roofs and color steel tiles.
It does two jobs at once: acting as a heat mirror and an elastic waterproof seal. A single brush application directly onto the metal surface forms a seamless barrier, solving your three biggest headaches at once: structural leaks, extreme indoor heat, and roof rust.
Core Advantages

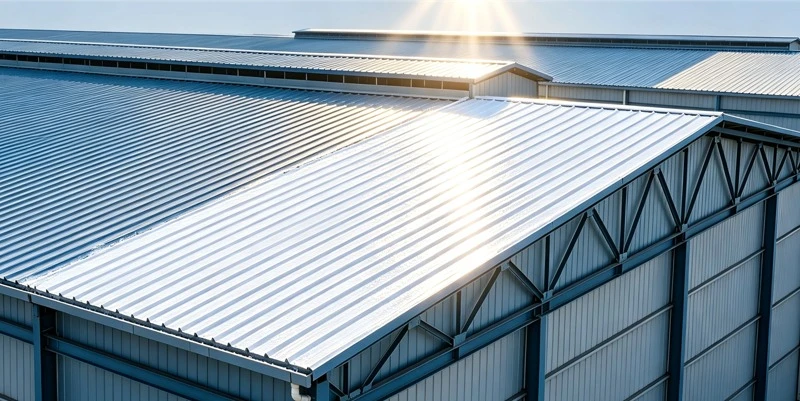

Cooler roofs, lower AC bills
We tested this at a 0.89 Solar Reflectance. It literally acts like a mirror on your metal roof. The heat bounces off, and your indoor temperatures drop noticeably.

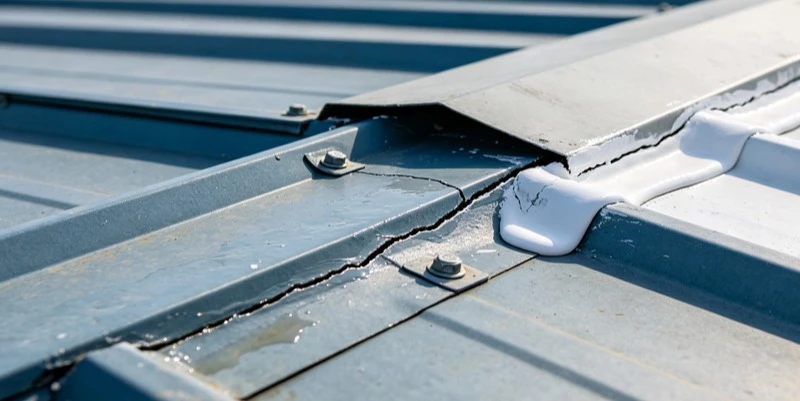

Seals joints that move
Metal expands and shrinks. Traditional waterproof coatings crack under this stress. Our 56% solid-content formula stays rubber-like, flexing with the roof to keep seams and fasteners watertight.

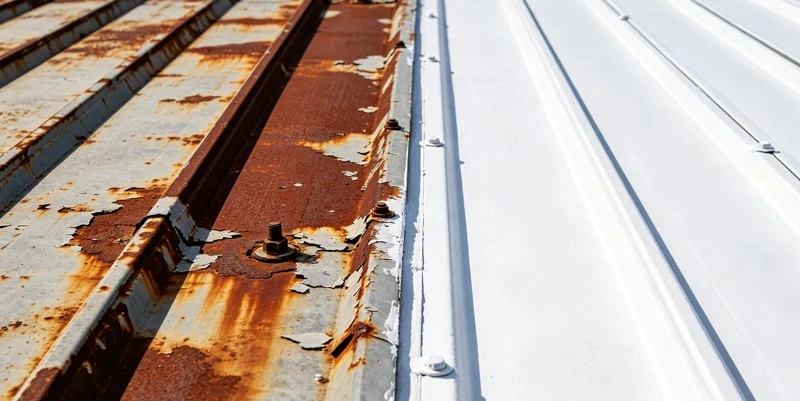

Stops rust dead in its tracks
UV and standing water will rot color steel tiles. This coating grips the surface hard and won't peel, forming a weather-tight barrier that adds years to your roof's lifespan.
Zero fire hazards during application
It's water-based. You brush it on cold. No open flames, no safety risks, and absolutely no need to shut down your production lines.
Comprehensive Technical Specifications
|
Category |
Test Item |
Standard / Expected |
Tested Value |
|
Thermal Performance |
Solar Reflectance |
≥ 0.65 |
0.89 |
|
Near-Infrared Reflectance |
≥ 0.80 |
0.9 |
|
|
Hemispherical Emittance |
≥ 0.85 |
0.91 |
|
|
Waterproof & Mechanical |
Solid Content |
- |
56% |
|
Tensile Bond Strength |
≥ 1.0 MPa |
1.5 MPa |
|
|
Elongation at Break |
≥ 200% |
300% |
|
|
Low-Temperature Flexibility |
-20°C, no cracking |
Pass (-20°C) |
|
|
Water Impermeability |
0.3 MPa, 30min no leak |
Pass |
|
|
Application Specs |
Theoretical Consumption |
- |
0.25~0.5 Kg/m² |
|
Drying Time (Surface/Hard) |
≤ 4h / ≤ 12h |
2h / 8h |

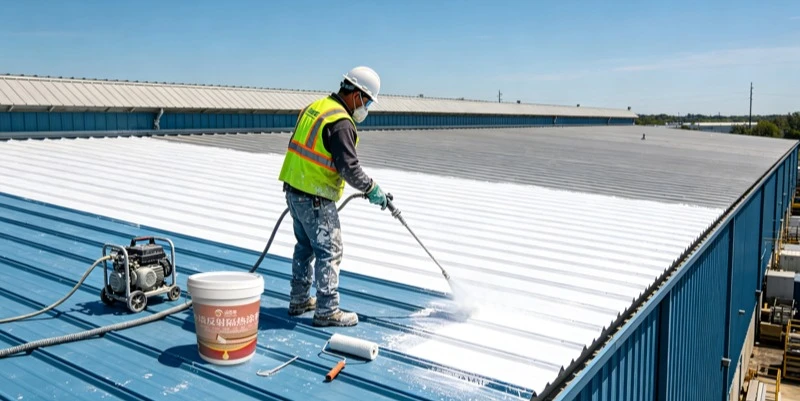

Standard Application Process
Surface Prep
Thoroughly clean the metal roof to remove all rust, dust, and loose debris. A perfectly clean surface is critical to ensure a solid bonding foundation for the coating.
Apply Primer
Evenly brush the base coat over the targeted areas. This primer deeply penetrates and seals the metal substrate, preparing it for the reinforcement layer.
Embed Fabric
While the primer is still wet, smoothly embed the pre-cut stitch-bonded polyester fabric over vulnerable seams and press flat to eliminate any air bubbles.
Apply Topcoat
After the base sets, brush the final topcoat to completely seal the system, forming a seamless, highly elastic waterproof and thermal barrier.
Our Work Process
01
Pre-sales Consultancy
Free consultation to assess your project needs and roof conditions.
02
Custom Solution
Providing targeted waterproofing and heat insulation plans.
03
Production & Shipping
Strict quality control and fast dispatch directly to your site.
04
Technical Support
Ongoing guidance provided to ensure perfect application results.
Our Featured Projects
Providing ultimate protection for various industrial facilities.
Industrial Steel Structure Factories
Ideal for aging color steel tile roofs. It instantly drops high indoor temperatures and permanently seals structural joints.
Large Storage Tanks & Warehouses
Perfect for chemical tanks and granaries where internal temperature control and long-term rust prevention are critical.
Breeding Farms & Prefabricated Houses
Provides a cool, watertight environment, significantly reducing heat stress on livestock and extending the life of the metal structure.
Certifications & Qualifications
FAQ
Q: What are the substrate preparation requirements before application?
A: The concrete substrate must be fully cured (minimum 28 days) and mechanically ground to remove weak laitance. The surface must be clean, free of oil, and have a moisture content below 8% before applying the compatible primer.
Q: Does TBN-300 require a clear protective topcoat?
A: A: It functions as a standalone structural wear layer. However, if the floor is exposed to direct sunlight (UV exposure) or requires extreme chemical resistance, a clear aliphatic polyurethane topcoat is recommended.
Q: What if the recoat window exceeds the standard time?
A: A: The standard minimum recoat time is ≥6 hours. If the interval exceeds 24 hours, the cured surface must be mechanically sanded to restore a mechanical profile and ensure inter-coat adhesion.
Q: Is this material classified as hazardous cargo for sea freight?
A: A: No. TBN-300 is a water-based, solvent-free formulation. It is classified and shipped as general non-hazardous cargo. Standard MSDS is provided for export clearance.
Q: Technical Support & Ordering
A: Contact our engineering team for detailed test reports, physical samples, or bulk FOB/CIF pricing.
