Guangdong Tubainian New Materials Co., Ltd. is one of the leading manufacturers and suppliers of aerogel thermal insulation coating in China. We are committed to providing high quality customized coatings with low price. Welcome to buy the newest aerogel thermal insulation coating in stock here from our factory. If you have any enquiry about pricelist, please feel free to email us.

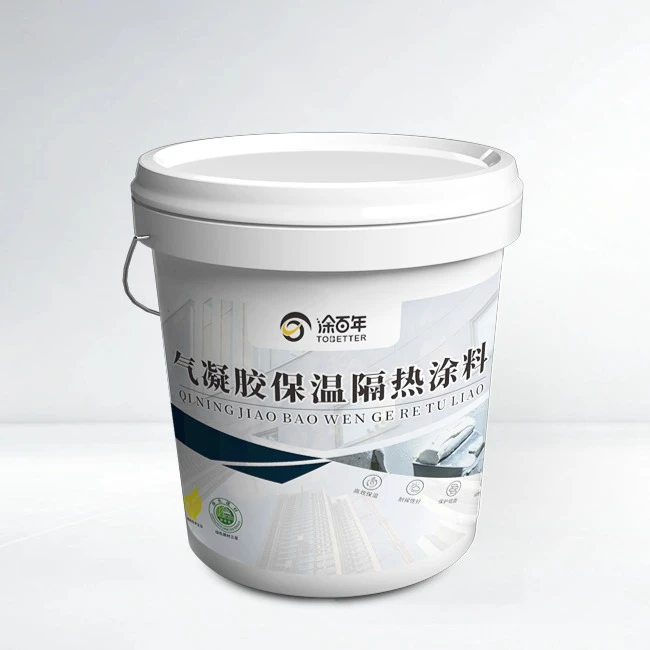

Aerogel Thermal Insulation Coating Overview

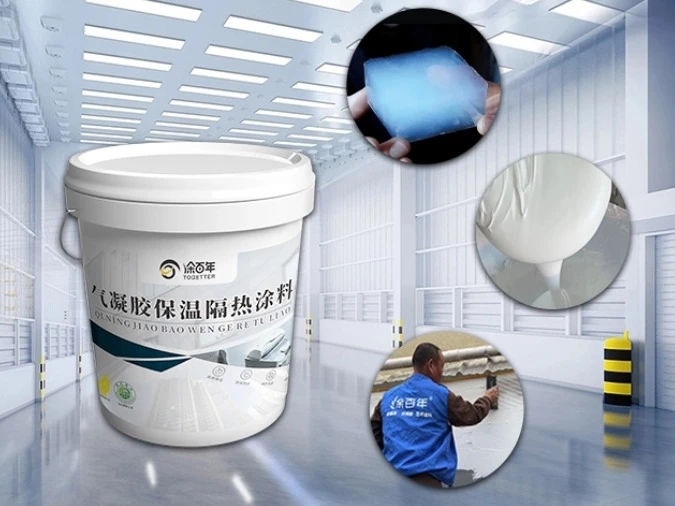

TBN-Z7600 is a high-performance water-based aerogel insulation coating built for demanding architectural and industrial projects. It delivers 0.044 W/(m·K) thermal conductivity, Class A fire safety, and a lightweight 0.52 g/mL wet density.
Easily applied via spray or trowel, its high tensile bond strength grips complex geometries perfectly-replacing bulky rigid boards. It cures into a seamless barrier that permanently stops thermal bridging, condensation, and CUI(Corrosion Under Insulation).
Our Products Advantages
Where performance meets reliability.
Ultra Low Thermal (0.044 W/(m·K))
Nano-porous gel tech creates a continuous, high-efficiency thermal barrier that flat-out stops heat transfer.
Lightweight & Space Saving
Ditch the bulky EPS/XPS boards. Hit your insulation targets without adding any structural dead weight to the facade.
Class A Non Combustible
Adds zero fire load to the site. Easily clears the strictest fire codes for high-rise and public projects.
Seamless Anti Delamination
Liquid application means zero seams. It locks out water ingress and thermal bridges while fundamentally preventing hollowing and peeling.
Technical Specifications
|
|
|||
|
Parameter Category |
Technical Specification |
Parameter Value |
Executive Standard |
|
Basic Information |
Full Product Name |
Thermal Insulation Aerogel Mid-Coat |
/ |
|
|
Product Model |
TBN-Z7600 |
/ |
|
|
Core Ingredients |
High-purity inorganic nano-aerogel, hollow microspheres, inorganic binder, functional additives |
/ |
|
|
Product Positioning |
The core main layer of the aerogel thermal insulation system, specifically designed for thick-build thermal insulation application |
/ |
|
Thermal Performance |
Thermal Conductivity (at 25°C room temp) |
≤ 0.044 W/(m·K) |
GB/T 10294-2008 |
|
Safety & Environment |
Flammability Rating |
Class A (Non-combustible) |
GB 8624-2012 |
|
Mechanical & Durability |
Water Resistance (96h) |
No blistering, no peeling, no chalking |
|
|
|
Alkali Resistance (48h) |
No blistering, no peeling, no chalking |
|
|
|
Freeze-thaw Resistance (10 cycles) |
No cracking, no hollowing, no peeling |
|
|
|
Temperature Resistance Range |
-40°C ~ 120°C |
/ |
|
Application Parameters |
Application Method |
Troweling, scraping, mechanical spraying |
/ |
|
|
Theoretical Coverage Rate |
0.5~0.7 kg/m² per mm thickness |
/ |
|
|
Recommended Single-Pass Thickness |
≤ 3mm |
/ |
|
|
Recommended Total Thickness |
Interior & exterior walls 5~20mm, as designed |
/ |
|
|
Surface Dry Time (25°C / 60% Hum.) |
≤ 1h |
/ |
|
|
Full Cure Time |
24~48h |
/ |
|
|
Application Environment |
Temp 5~35°C, humidity <85%. Strictly prohibited in rain or winds above scale 5. |
/ |
|
|
Substrate Requirements |
Solid and flat, moisture content <10%, pH value <10, free of loose dust and oil stains. |
/ |
|
|
Dilution Ratio |
Ready to use directly; for spraying, can be diluted with 5%~10% clean water. |
/ |
|
|
Standard Color |
White, cement grey |
/ |
|
Packaging, Storage & Transport |
Packaging Specification |
10kg / pail |
/ |
|
|
Storage Conditions |
Store sealed in a cool, dry, well-ventilated place at 5~30°C. Protect from freezing and isolate from strong acids/alkalis. |
/ |
|
|
Unopened Shelf Life |
12 months |
/ |
|
Parameter Category |
Technical Specification |
Parameter Value |
Executive Standard |
|
Basic Information |
Full Product Name |
Thermal Insulation Aerogel Mid-Coat |
/ |
|
|
Product Model |
TBN-Z7600 |
/ |
|
|
Core Ingredients |
High-purity inorganic nano-aerogel, hollow microspheres, inorganic binder, functional additives |
/ |
|
|
Product Positioning |
The core main layer of the aerogel thermal insulation system, specifically designed for thick-build thermal insulation application |
/ |
|
Thermal Performance |
Thermal Conductivity (at 25°C room temp) |
≤ 0.044 W/(m·K) |
GB/T 10294-2008 |
|
Safety & Environment |
Flammability Rating |
Class A (Non-combustible) |
GB 8624-2012 |
|
|
OEM / ODM Services for Aerogel Insulation Coating
Guangdong Tubainian New Materials Co., Ltd.
We engineer custom aerogel solutions to match your specific climate, substrates, and target market. From chemistry to packaging, we provide end-to-end support:
Thermal Targeting
We dial in the exact thermal conductivity and build thickness your project demands.
Substrate-Specific Formulations
Whether applying to concrete facades, metal tanks, or industrial pipelines, we tweak the chemistry for maximum adhesion.
Private Labeling
Build your own brand. We handle custom pails, labels, and technical docs completely under your name.
Applications of Aerogel Thermal Insulation Coating
Applications of Aerogel Thermal Insulation Coating.

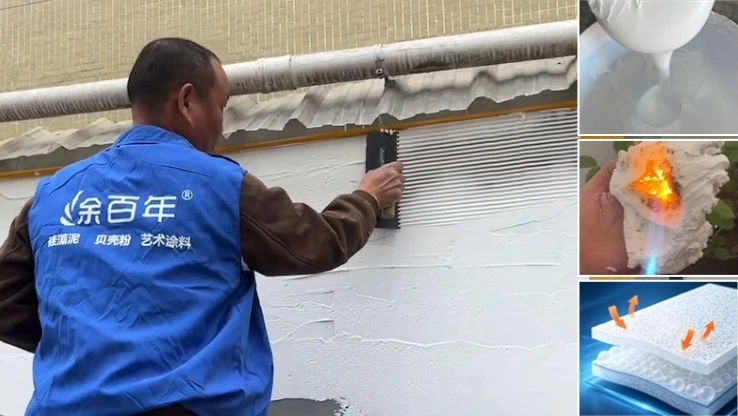

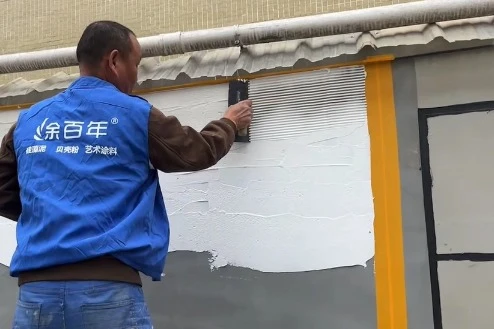

Interior & Exterior Wall Thermal Retrofits
Replaces bulky EPS/XPS boards. At a lightweight 0.52 g/mL wet density, it eliminates facade hollowing risks without adding structural dead weight. For interiors, a 2-3mm layer effectively prevents thermal bridging and condensation while maximizing usable floor space.

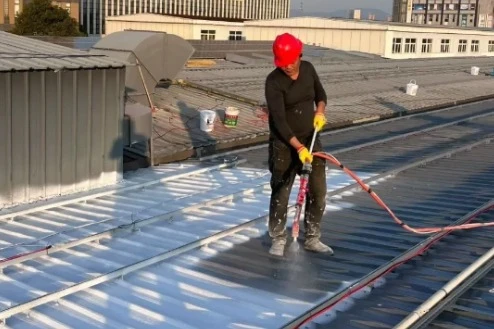

Concrete & Corrugated Metal Roofs
Conforms seamlessly to complex roof profiles. It delivers 0.044 W/(m·K) insulation performance, eliminating the need for mechanical fasteners and gap-prone rigid boards, safely managing thermal loads without overstressing the roof structure.

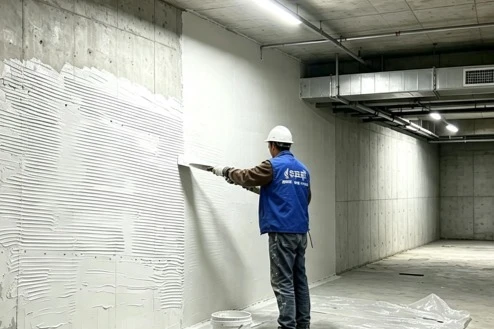

Basement & Subterranean Condensation Control
Keeps underground concrete above the dew point. It replaces moisture-absorbing fibrous batts with a space-saving, seamless barrier. Driven by excellent tensile bond strength, it permanently adheres to the substrate to stop surface condensation.

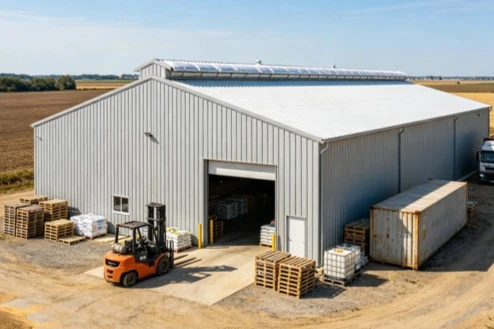

Grain Silos & Agricultural Warehousing
Stabilizes internal temperatures for sensitive storage. By replacing jointed traditional insulation with a 0.044 W/(m·K) continuous coating on steel or concrete, it fundamentally eliminates moisture accumulation and internal condensation.

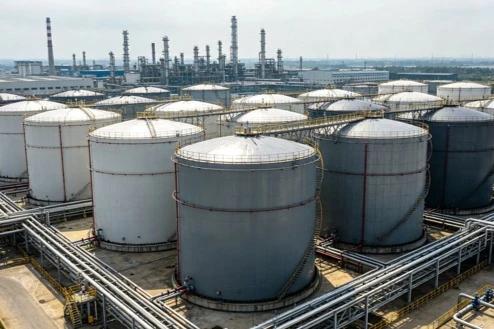

Petrochemical Tanks & CUI Protection
Replaces traditional mineral wool and metal jacketing. Applied directly to steel vessels, this continuous thermal barrier permanently blocks water ingress, directly eliminating Corrosion Under Insulation (CUI) while maintaining required operational temperatures.

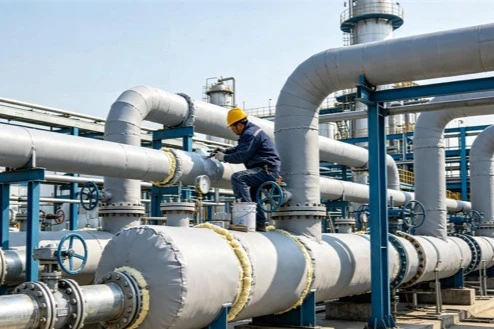

Industrial Pipelines, Valves & Complex Geometries
Replaces poorly fitting prefabricated insulation shells. Easily applied over irregular components like flanges and valves, its high tensile bond strength ensures firm adhesion, eliminating thermal bridges and maintaining safe-to-touch surface temperatures.
About TOBETTER Aerogel Insulation Coating Manufacturer
Established in 2005 in Huizhou, China, TOBETTER engineers high-performance architectural coatings. Our Aerogel Thermal Insulation System provides a thin, sprayable thermal barrier-integrating primer, aerogel mid-coat, and topcoat-built specifically for demanding facades and industrial equipment.
01
Verified Thermal Performance
TBN-Z7600 achieves 0.044 W/(m·K) thermal conductivity. GB/T 10295 certified, delivering objective data for precise engineering.
02
Fully Integrated System
Complete stack: primer, mid-coat, and topcoat. Eliminates cross-supplier risks while maximizing thermal resistance and long-term tensile bond strength.
03

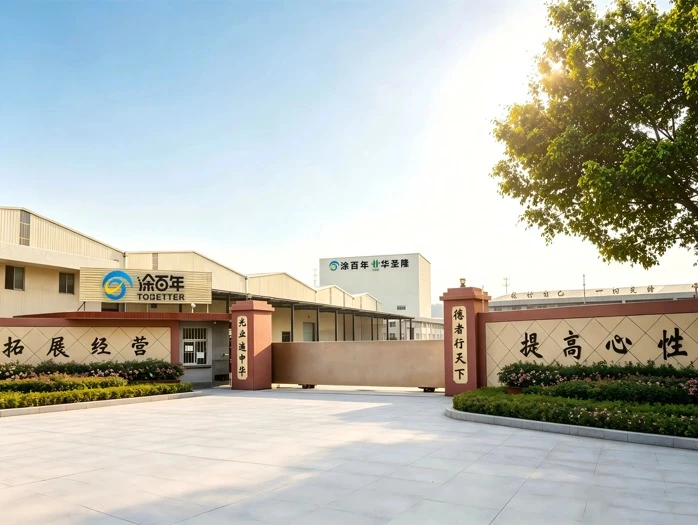

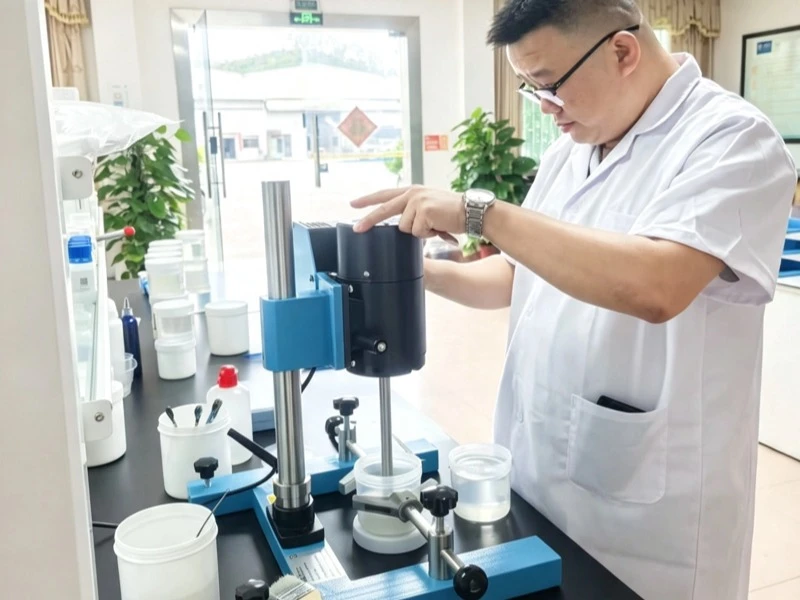

In-House Manufacturing
Our Huizhou facility controls everything from formulation to packaging-guaranteeing strict batch consistency and seamless OEM/ODM scaling.
04
Certified & Proven
ISO 9001/14001 certified. 20 years of expertise, proven on major infrastructure like Baiyun Airport (Phase III) and Southern University of Science and Technology.
Why Choose TOBETTER Thermal Insulation Solutions
Data-Backed Aerogel Tech
GB/T 10295 certified 0.044 W/(m·K) thermal conductivity and Class A fire rating. Forms a continuous, seamless barrier to eliminate thermal bridging.
0.52 g/mL Lightweight Optimization
0.52 g/mL wet density. A 2-3mm liquid-applied layer replaces bulky boards, eliminating structural dead weight and hollowing risks.
20+ Years OEM/ODM Expertise
Established in 2005. We provide custom formulations, tailored packaging, and full technical documentation to meet specific regional building codes.
ISO-Certified Manufacturing
ISO 9001/14001 certified Huizhou facility. End-to-end production control-from raw materials to final batch testing-guarantees consistent, scalable supply.
Our Certifications
ISO 14001 Certificate
ISO 9001 Certificate
Green Building Materials Certificate
Environmental Label Certificate
FAQ
Q: Q: What is aerogel insulation coating?
A: A: An ultra-lightweight, liquid-applied thermal barrier with a wet density of 0.52 g/mL. It directly replaces bulky traditional boards, providing seamless coverage and a Class A fire rating across complex geometries.
Q: How does it improve insulation?
A: By utilizing an aerogel matrix, it achieves a GB/T 10295 certified thermal conductivity of 0.044 W/(m·K). This severely restricts heat transfer and eliminates the thermal bridging typically caused by rigid panel joints.
Q: What substrates is it compatible with?
A: Engineered for concrete facades, steel structures, petrochemical tanks, and complex pipelines. It forms a continuous, moisture-blocking barrier that fundamentally prevents Corrosion Under Insulation (CUI) on metals.
Q: What is the recommended thickness?
A: Typically applied as a 2-3mm ultra-thin layer. This achieves standard thermal targets without adding the structural dead weight or hollowing risks associated with thick EPS/XPS systems.
Q: What is the expected service life?
A: Proven in legacy projects like Baiyun International Airport (Phase III). When applied to our ISO-certified specifications, the coating delivers decades of structural protection without delamination or performance degradation.
Q: Do you offer OEM/ODM services?
A: Yes. Backed by our Huizhou manufacturing facility and 20 years of expertise since 2005, we provide customized formulations, tailored packaging, and full technical documentation to meet specific regional codes.
